3 - 37DigiGate-700
™
for Windows
®
- User’s Guide
DigiGate-700
for Windows
™ ®

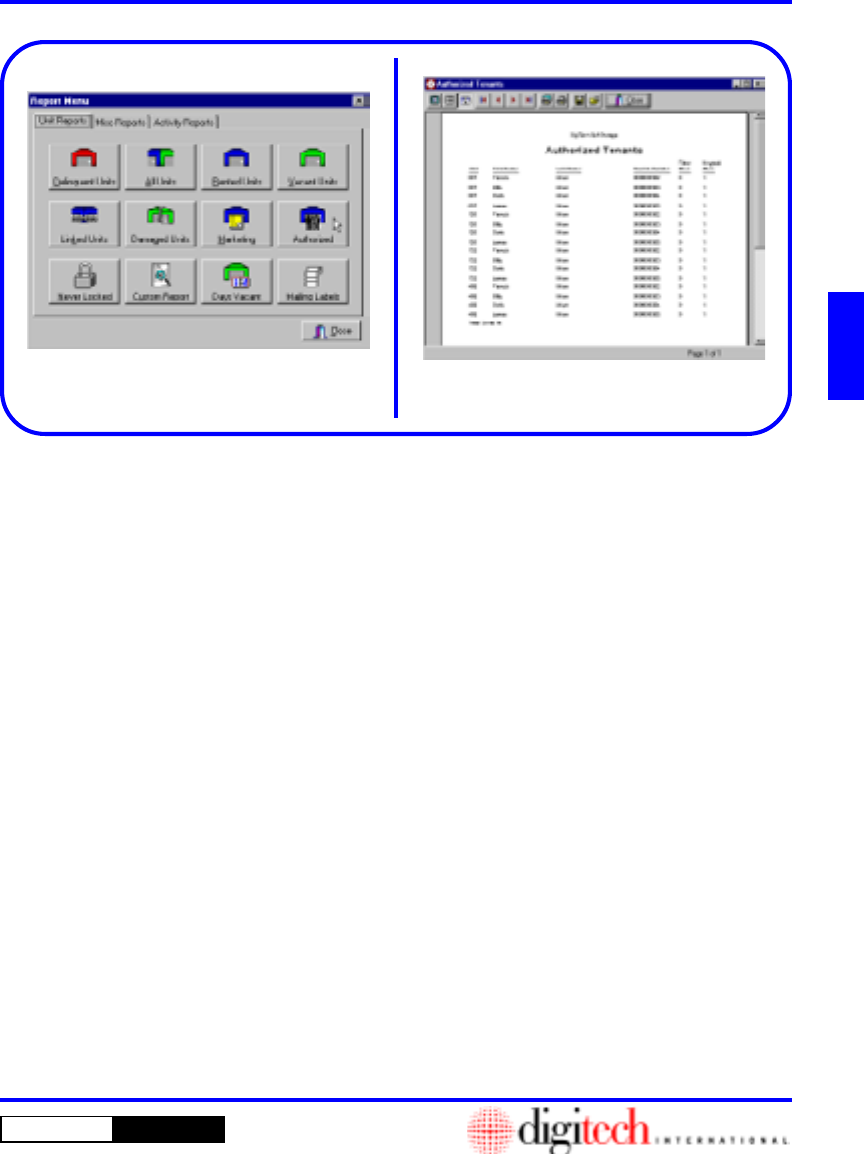

Figure 3-75
Figure 3-76
1. From the
Main Menu
, Figure 3-46, Page 3-24,
Click on the
Report
button to open the
Report
Menu
window. Figure 3-75.
2. Click on the
Authorized
button.
3. This will open the report display window with
the title of
Authorized Tenants
and run the
Authorized Tenants report. Figure 3-76.
4. The columns displayed are: Unit Number,
First Name, Last Name, Access
Number, Time Zone, and Keypad Zone.
5. The total at the end of the report is:
Total Units (listed in the report).
6. Click on the
Close
button to return to the
Report Menu
.
Authorized
